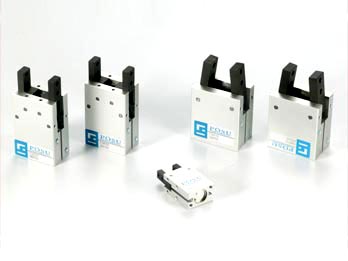

Air Chucks - CH Series

‧Air Chucks - CH Series

Product Specifications

Type		PAS				PAD
Bore size (mm)		φ16	φ20	φ25	φ32	φ16	φ20	φ25	φ32
M (N.m) Holding moment	Open	0.8∗p	1.7∗p	3.4∗p	6.1∗p	–	–	–	–
M (N.m) Holding moment	Close	1.1∗p	2.3∗p	4.3∗p	8.1∗p	–	–	–	–
Holding force　 P=0.5MPa (N) 　　　　　　　L= 30mm	Open	–	–	–	–	18	35	60	85
Holding force　 P=0.5MPa (N) 　　　　　　　L= 30mm	Close	–	–	–	–	24	46	75	100
Max. clamp length (mm)		40	60	70	85	40	60	70	85
Opening stroke (mm)		–				8	12	14	16
Angle		-10° ~ + 30°				–
Power fluid		Filtered air with or without lubrication
The range of pressure (kgf/cm²)		1 ~ 7
The range of temperature (°C)		0 ~ 60

Product Character

Double acting air chuck cylinders

CHV	Air Chucks - Fulcrum Type
CHU	Air Chucks - Parallel Type

CT series with magnetic piston is standard accessory.

There are 8 different with light weight and compact body design, type of air chucks.

The air chucks mounting housing from three direction.

Sensor mounted in the groove of the air chucks body.

Compact body has high holding force.
