Product Specifications |
| Bore size of cylinder (mm) |
φ40, φ50, φ63, φ80, φ100, φ125, φ150, φ180, φ200, φ224, φ250 |
| Power fluid |
Filtered hydraulic oil |
| Material of cylinder barrel |
Steel tube |
| The range of pressure (kgf/cm²) |
70 / 40 |
| Speed range (mm/s) |
0.5 ~ 300 |
| The range of temperature (°C) |
-10 ~ 60 |
|
|
Product Character |

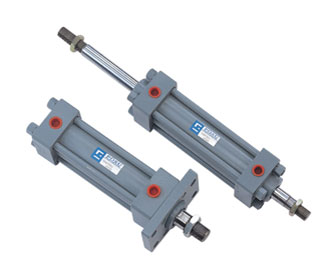

Double acting hydraulic cylinders
| SH... |
Double Acting - Single end Rod Type |
| SH..B.. |
Double Acting - Single end Rod Type
(with cushion) |
| SHD... |
Double Acting - Double end Rod Type |
φ180 ~ φ250 standard hydraulic cylinders are manufactured by order. Square or round covers can be made by order. Relative dimensions can b provided by requested. |
|
