Product Specifications |
| Bore size of cylinder (mm) |
φ12 |
φ16 |
φ20 |
φ25 |
φ32 |
φ40 |
φ50 |
φ63 |
| The range of stroke (mm) |
10 ~ 100 |
20 ~ 175 |
25 ~ 150 |
| Power fluid |
Filtered air with or without lubrication |
| The range of pressure (kgf/cm²) |
2 ~ 7 |
| The range of temperature (°C) |
-10 ~ 60 |
|
|
Product Character |

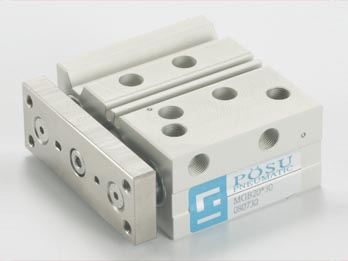

Twin-Guide cylinders
| MGB |
Heavy Duty (Bush) Type |
| MGU |
Heavy Duty (Linear Bearing) Type |
Strong cylinder suitable for heavy load, for stopping work carriers of various size at a fixed position, and for stacking many work carriers, et.
Designed for right angled turn, positioning, and lifting on the conveyor line.
All series of piston can with magnet. |
|
