Product Specifications |

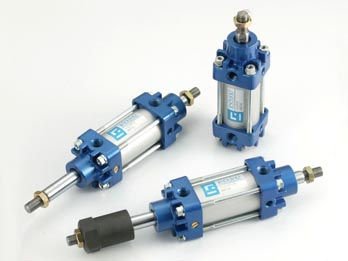

Double acting cylinders

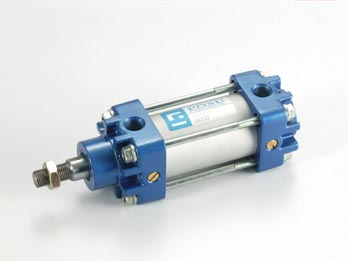

| SA... |
Double Acting - Single end Rod Type |
| SAR... |
Double Acting - Single end Rod Type
( piston with magnet ) |

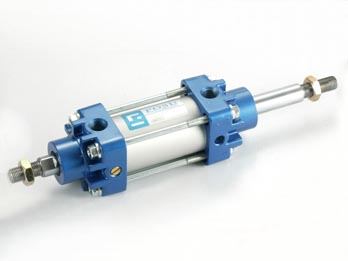

| SAD |
Double Acting - Double end Rod Type |
| SADR... |
Double Acting - Single end Rod Type
( piston with magnet ) |
SAD..A
SAD..B |
Adjustable Foward Storke Cylinder
( adjustable stroke A: 25mm B:50mm) |
SADR..A
SADR..B |
Adjustable Foward Stroke Cylinder
( piston with magnet ) (adjustable stroke A: 25mm B: 50mm)
|
|
|
Product Character |
| Bore size of cylinder (mm) |
φ40, φ50, φ63, φ80, φ100, φ125, φ150, φ180, φ200, φ250 |
| Standard stroke (mm) |
25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 |
| The range of stroke (mm) |
Stroke till 2500mm by request |
| Power fluid |
Filtered air with or without lubrication |
| Material of cylinder barrel |
Aluminum |
Steel |
| The range of pressure (kgf / cm²) |
1 ~ 9.9 |
| The range of temperature (°C) |
-10 ~ 60 |
|
|
