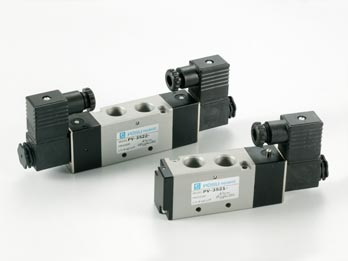

| Model |
PV-3521 |
PV-3522 |
PV-3532.42 |
| Port thread size (Rc) |
3/8" |
| Port amount |
5/2 |
5/3 |
| Used fluid |
Air |
| Pressure range (kgf/cm²) |
1.5 ~ 8 |
2 ~ 7 |
| Effective section area (mm²) |
30 |
18 |
| Ambient temperature (°C) |
0 ~ 60 |
| Allowance voltage range |
AC110V HZ/AC220V HZ/ DC24V (± 10%) |
| Power consumption |
AC = 8VA / DC = 5W |
| Insulation grade (°C) |
Class F |
| Weight (g) |
300 |
385 |
525 |
Pneumatic and spring return, manually control in first priority.
European imported coil wire with low electricity consumption.
|
