| G1/8, 1/4 Manual Valve (5 Way) |
 |
|
| Home > Products > Mechanical & Air Pilot Valve > Hand Valve > G1/8, 1/4 Manual Valve (5 Way) |
| |
|
|

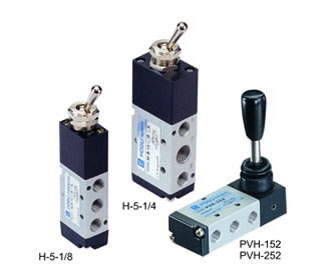

| ‧G1/8, 1/4 Manual Valve (5 Way) |
|
|
|
|
|
|
|
 |
Product Specifications |
| Order No. |

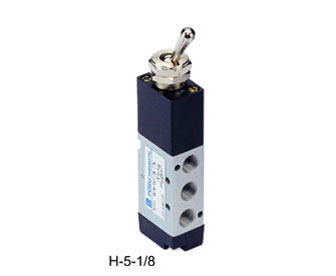

H-5-1/8 |

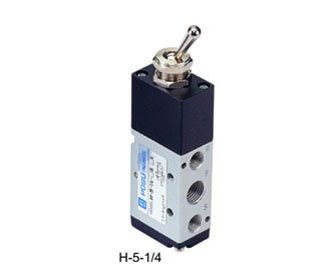

H-5-1/4 |

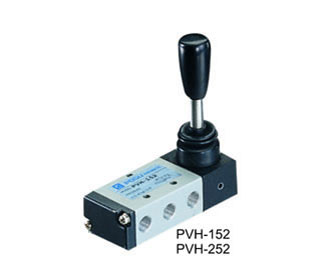

PVH-152 |
PVH-252 |
| Port THREAD SIZE (G) |
1/8" |
1/4" |
1/8" |
1/4" |
| Port amount |
5/2 |
| Used fluid |
Air |
| Pressure range (kgf/cm²) |
1.5 ~ 8 |
0 ~ 8 |
| Air flow (l/min) |
650 |
945 |
650 |
945 |
| Ambient temperature (°C) |
0 ~ 60 |
|
|
|
|
|
