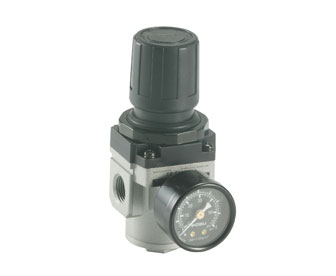

| Direct Operated Precision Regulator |
 |
|
| Home > Products > F.R.L Combination Unit > Direct Operated Precision Regulator |
| |
|
|
| ‧Direct Operated Precision Regulator |
|
|
|
|
|
|
|
 |
Product Specifications |
| Type | PRP3000-02 | PRP3000-03 |
| Port size (G) |
1/4" |
3/8" |
| Port size for pressure gauge (G) |
1/8" |
| Fluid |
Air |
| Proof pressure (kgf/cm² ) |
12 |
| Max. operating pressure (kgf/cm² ) |
8 |
| Regulating range (kgf/cm² ) |
0.05~6 |
| Setting sensitivity (kgf/cm²) |
0.01 |
| Air consumption (l/min) |
4~6(3kgf/cm²) |
| Ambient and media temperature ( °C ) |
-5 ~ 60 With no freezing |
| Weight (kg) |
0.4 |
| Name / Type | Part No . |
Referance Page
|
| PRP3000 |
| PR/PW (Blacket) |
W423 |
A-35 |
|
Pressure gauge
| 10 kgf/cm² | Round |
K40110 |
A-36 |
| Square |
GK27510 |
A-36 |
|
4 kgf/cm²
| Round |
K40104 |
A-36 |
|
|
Product Description |
We are professional manufacturer of air filter, regulator, and lubricator. We can manage to manufacture filter regulator lubricator products to achieve customers' demands and requests. Welcome to browse the details with product information of filter regulator lubricator combination unit and we also provide related products as following below:
|
|
|
|
|
