產品規格 |
| 型號 |
PAS |
PAD |
| 氣缸內徑 (mm) |
φ25, φ32, φ40, φ50, φ63 |
φ32, φ40, φ50, φ63 |
| 作動方式 |
複動式 |
| 工作媒體 |
已濾清之壓縮空氣(潤滑或未潤滑) |
| 最高壓力 (kgf/cm²) |
15 |
| 使用壓力範圍 (kgf/cm²) |
1 ~ 10 |
| 缸體材質 |
鋁合金管 |
| 轉角角度 |
90° ± 2 ° (Angle of 0°, 45° and 60° are optional ) |
| 轉角方向 |
順時針或逆時針旋轉 |
|
|
產品特性 |

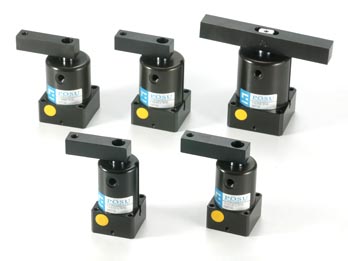

Double acting cylinders
| PAS |
Double Acting - Single Side Clamping Arm |
| PAD |
Double Acting - Double Side Clamping Arm |
Swing clamp cylinders are used at limit working space. Easy to fix the work piece with out additional plate.
These pull-type cylinders have five standard sizes and two additional plates which can be installed at any angle. |
|
