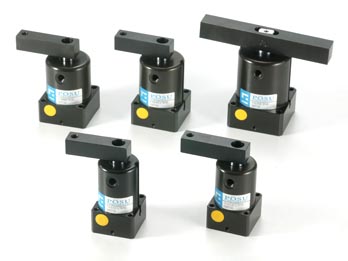

Pneumatic - Swing Clamp Cylinders - PA Series
‧Pneumatic - Swing Clamp Cylinders - PA Series


Pneumatic - Swing Clamp Cylinders - PA Series

Product Specifications
Type PAS PAD
Bore size of cylinder (mm) φ25, φ32, φ40, φ50, φ63 φ32, φ40, φ50, φ63
Operation Double acting
Power fluid Filtered air with or without lubrication
Max. pressure (kgf/cm²) 15
The range of pressure (kgf/cm²) 1 ~ 10
Material of cylinder barrel Anodised aluminum alloy
Standard angle of rotation 90° ± 2 ° (Angle of 0°, 45° and 60° are optional )
Rotating direction Clockwise or counter clockwise

Product Character

Double acting cylinders

PAS  Double Acting - Single Side Clamping Arm
PAD  Double Acting - Double Side Clamping Arm



  • Swing clamp cylinders are used at limit working space. Easy to fix the work piece with out additional plate.
  • These pull-type cylinders have five standard sizes and two additional plates which can be installed at any angle.
