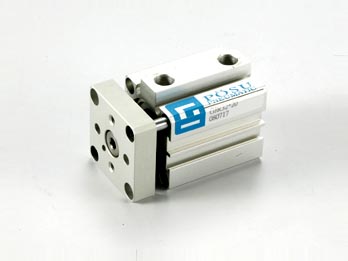

Compact Pneumatic Guide Cylinders - GJ Series
Home > Products > Compact Cylinder > Compact Pneumatic Guide Cylinders - GJ Series

‧Compact Pneumatic Guide Cylinders - GJ Series



Product Specifications
Type GJ GJ..B
Bore size of cylinder (mm) φ 20 ~φ 63 φ 32 ~φ 63
Standard stroke (mm) 10, 20, 30, 40, 50, 60, 70, 80
Power fluid Filtered air with or without lubrication
The range of pressure (kgf/cm²) 1 ~ 10.2
The range of temperature (°C) -10 ~ 60

Product Character

Double acting guide cylinders

GJ  Double Acting-Standard Type
GJR  Double Acting-Standard Type
  (piston with magnet)
GJ..B  Double Acting-Female Thread Type
GJR..B  Double Acting-Female Thread Type
  (piston with magnet)



  • All series of piston can with magnet.
  • Rod achieve the effect of highly accurate operation.
  • Two types all easy to install, also reducing machine design work and cost.
