Home > Products > F.R.L Combination Unit > Air Filter + Mist Separator + Regulator

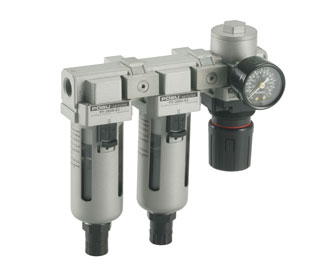

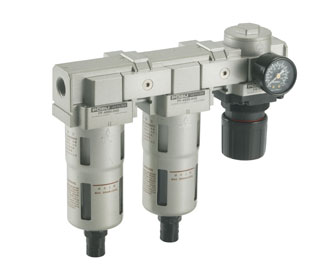

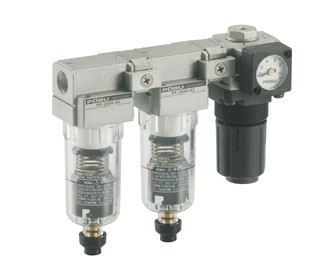

Air Filter + Mist Separator + Regulator
‧Air Filter + Mist Separator + Regulator


Air Filter + Mist Separator + Regulator
Air Filter + Mist Separator + Regulator
Air Filter + Mist Separator + Regulator

Product Specifications
Type PC2030 PC3030 PC4030
ComponentAir Filter PF2000 PF3000 PF4000
Mist Separator PFM2000 PFM3000 PFM4000
Regulator PR2000 PR3000 PR4000
Port size (G) 1/8", 1/4" 1/4", 3/8" 1/2, 3/4"
Port size for pressure gauge (G) 1/8" 1/8" 1/4 "
Fluid Air
Proof pressure (kgf/cm² ) 15
Max. operating pressure (kgf/cm² ) 10.2
Regulating range (kgf/cm² ) 0.5 ~ 8.7
Rate flow (l/min (ANR)) 200 450 1100
Ambient and media temperature ( °C ) -5 ~ 60 With no freezing
Nominal filtration rating ( µm) PF:5 /PFM:1/ (95% filtered partide size)
Outlet side oil mist concentration (mg/m³) Max 1.0 (ANR ) (≅0.8pm)
Recommended oil ISO VG32
Bowl material Polycarbonate
Weight (kg) 0.5 1.2 2.2

※ Only for round gauge

Name / TypePart No .
Referance Page
PC2000 PC3000 PC4000
Accessory (Optional)

Pressure gauge

10 kgf/cm ²

Round K40110 K40 110 K40210 A-36
Square GK27510 GK27510 GK27510 A-36
4 kgf/cm²
Round K40104 K40104 K40204 A-36
Auto drain N.C (Float type) ※ AD53 AD53
 (Dif ferential pressure type)
AD62
 Piping adaptor
E30-04 E40-10
A-38
 T -type spacer
Y21-M5
Y31-02
A-33
 L-type bracket
B210L
B310L B410L
A-34
 T -type bracket
B210T
B310T B410T
A-34
 O-type spacer
Y20
Y30 Y40
A-33
 Cross interface
Y32-02 Y42-04
A-38
Attachment Residual pressure release
RHS2000-02
PHS3000-03 PHS4000-06
A-37
 Pressure switch
P1- □
P1- □
P1- □
A-39
 Digital pressure switch
P20□
P20□ P20□
A-41

※ Mini operating: N.C-1.5 kgf/cm²


Product Description

We are professional manufacturer of air filter, regulator, and lubricator. We can manage to manufacture filter regulator lubricator products to achieve customers' demands and requests. Welcome to browse the details with product information of filter regulator lubricator combination unit and we also provide related products as following below:
