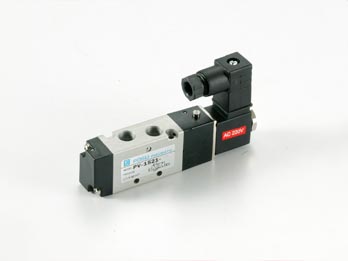

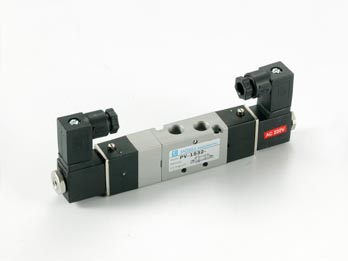

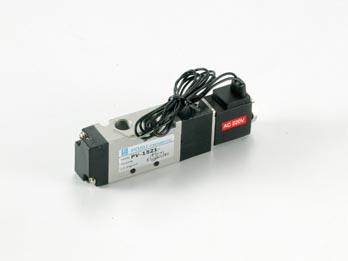

PV-150 Electrically Operated (5 Way)
‧PV-150 Electrically Operated (5 Way)


PV-150 Electrically Operated (5 Way)
PV-150 Electrically Operated (5 Way)
PV-150 Electrically Operated (5 Way)

Product Specifications
Model PV-1521 PV-1522 PV-1532.42
Port thread size (Rc) 1/8"
Port amount 5/2 5/3
Used fluid Air
Pressure range (kgf/cm²) 1.5 ~ 8 2 ~ 7
Effective section area (mm²) 12 9
Ambient temperature (°C) 0 ~ 60
Allowance voltage range AC110V HZ/AC220V HZ/ DC24V (± 10%)
Power consumption AC = 3.5VA / DC = 2.4W
Insulation grade (°C) Class F
Weight (g) 140 175 200

Pneumatic return, manually control in first priority.
European imported coil wire with low electricity consumption.
