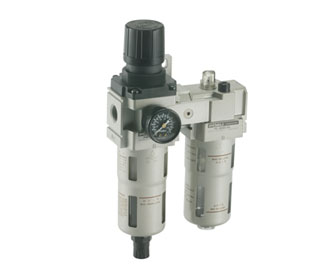

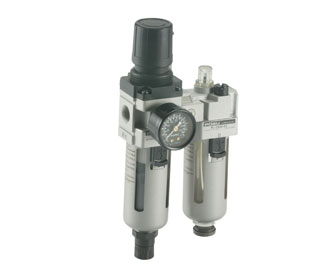

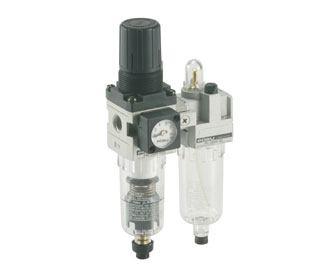

| Type |
PC2010 |
PC3010 |
PC4010 |
| Component | Filter Regulator |
PW2000 |
PW3000 |
PW4000 |
| Lubricator |
PL2000 |
PL3000 |
PL4000 |
| Port size (G) |
1/8", 1/4" |
1/4", 3/8" |
1/2, 3/4" |
| Port size for pressure gauge (G)※ |
1/8" |
1/8" |
1/4 " |
| Fluid |
Air |
| Proof pressure (kgf/cm² ) |
15 |
| Max. operating pressure (kgf/cm² ) |
10.2 |
| Regulating range (kgf/cm² ) |
0.5 ~ 8.7 |
| Ambient and media temperature ( °C ) |
-5 ~ 60 With no freezing |
| Nominal filtration rating ( µm) |
Standard: 5 / Option: 0.01, 0.3, 2 |
| Recommended oil |
ISO VG32 |
| Bowl material |
Polycarbonate |
| Weight (kg) |
0.4 |
0.9 |
1.8 |
※ Only for round gauge
| Name / Type | Part No . |
Referance Page
|
| PC2000 |
PC3000 |
PC4000 |
| Accessory (Optional) |
Pressure gauge
|
10 kgf/cm ²
| Round |
K40110 |
K40 110 |
K40210 |
A-36 |
| Square |
GK27510 |
GK27510 |
GK27510 |
A-36 |
|
4 kgf/cm²
| Round |
K40104 |
K40104 |
K40204 |
A-36 |
| Auto drain | N.C (Float type) ※ |
─ |
AD53 |
AD53 |
─ |
| (Dif ferential pressure type) |
AD62
|
─
|
─
|
─
|
| Piping adaptor |
─
|
E30-04 |
E40-10 |
A-38
|
| T -type spacer |
Y21-M5
|
Y31-02 |
─ |
A-33
|
| L-type bracket |
B210L
|
B310L |
B410L |
A-34
|
| T -type bracket |
B210T
|
B310T |
B410T |
A-34
|
| O-type spacer |
Y20
|
Y30 |
Y40 |
A-33
|
| Cross interface |
─
|
Y32-02 |
Y42-04 |
A-38
|
| Attachment | Residual pressure release |
RHS2000-02
|
PHS3000-03 |
PHS4000-06 |
A-37
|
| Pressure switch |
P1- □
|
P1- □
|
P1- □
|
A-39
|
| Digital pressure switch |
P20□
|
P20□ |
P20□ |
A-41
|
※ Mini operating: N.C-1.5 kgf/cm² |
