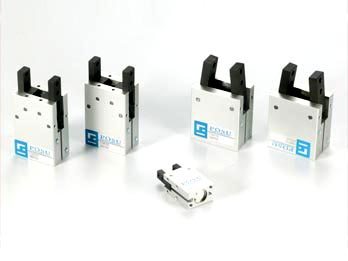

Air Chucks - CH Series
‧Air Chucks - CH Series


Air Chucks - CH Series

Product Specifications
Type PAS PAD
Bore size (mm) φ16 φ20 φ25 φ32 φ16 φ20 φ25 φ32
M (N.m)
Holding moment
 Open 0.8∗p 1.7∗p 3.4∗p 6.1∗p
 Close 1.1∗p 2.3∗p 4.3∗p 8.1∗p
Holding force  P=0.5MPa (N)
       L= 30mm
 Open 18 35 60 85
 Close 24 46 75 100
Max. clamp length (mm) 40 60 70 85 40 60 70 85
Opening stroke (mm) 8 12 14 16
Angle -10° ~ + 30°
Power fluid  Filtered air with or without lubrication
The range of pressure (kgf/cm²) 1 ~ 7
The range of temperature (°C) 0 ~ 60

Product Character

Double acting air chuck cylinders

CHV  Air Chucks - Fulcrum Type
CHU  Air Chucks - Parallel Type



  • CT series with magnetic piston is standard accessory.
  • There are 8 different with light weight and compact body design, type of air chucks.
  • The air chucks mounting housing from three direction.
  • Sensor mounted in the groove of the air chucks body.
  • Compact body has high holding force.
