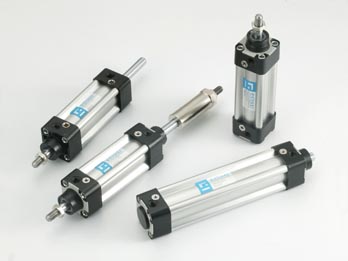

Double Acting - Aluminum Extruded Body Air Cylinders - SN Series
‧Double Acting - Aluminum Extruded Body Air Cylinders - SN Series


Double Acting - Aluminum Extruded Body Air Cylinders - SN Series
Double Acting - Aluminum Extruded Body Air Cylinders - SN Series
Double Acting - Aluminum Extruded Body Air Cylinders - SN Series

Product Specifications

Double acting cylinders

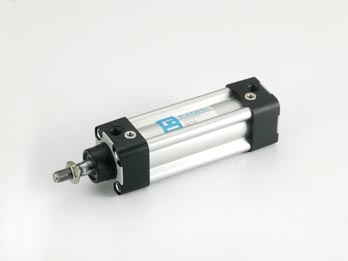

SN...  Double Acting - Single end Rod Type
SNR...  Double Acting - Single end Rod Type
 ( piston with magnet )

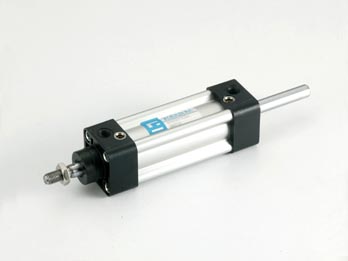

SND  Double Acting - Double end Rod Type
SNDR...  Double Acting - Single end Rod Type
 ( piston with magnet )
SND..A
SND..B
 Adjustable Foward Storke Cylinder
 ( adjustable stroke A: 25mm B:50mm)
SNDR..A
SNDR..B

 Adjustable Foward Stroke Cylinder
 ( piston with magnet ) (adjustable stroke A: 25mm B: 50mm)


Product Character
Bore size of cylinder (mm) φ32 φ40 φ50 φ63 φ80 φ100
Standard stroke (mm)  25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500
The range of stroke (mm)  Stroke till 2500mm by request
Power fluid  Filtered air with or without lubrication
Material of cylinder barrel  Aluminum extrusion, Anodised 20 microns
The range of pressure (kgf/cm²)  1 ~ 10.5
The range of temperature (°C)  -10 ~ 60
