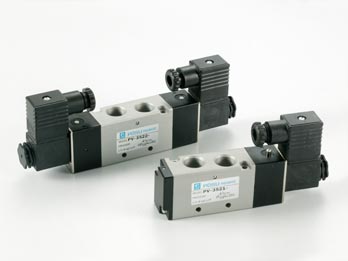

PV-350 Electrically Operated (5 Way)
‧PV-350 Electrically Operated (5 Way)


PV-350 Electrically Operated (5 Way)

Product Specifications
Model PV-3521 PV-3522 PV-3532.42
Port thread size (Rc) 3/8"
Port amount 5/2 5/3
Used fluid Air
Pressure range (kgf/cm²) 1.5 ~ 8 2 ~ 7
Effective section area (mm²) 30 18
Ambient temperature (°C) 0 ~ 60
Allowance voltage range AC110V HZ/AC220V HZ/ DC24V (± 10%)
Power consumption AC = 8VA / DC = 5W
Insulation grade (°C) Class F
Weight (g) 300 385 525


Pneumatic and spring return, manually control in first priority.
European imported coil wire with low electricity consumption.
